Our Services

Design, production and assembly under one roof, across four core competencies.

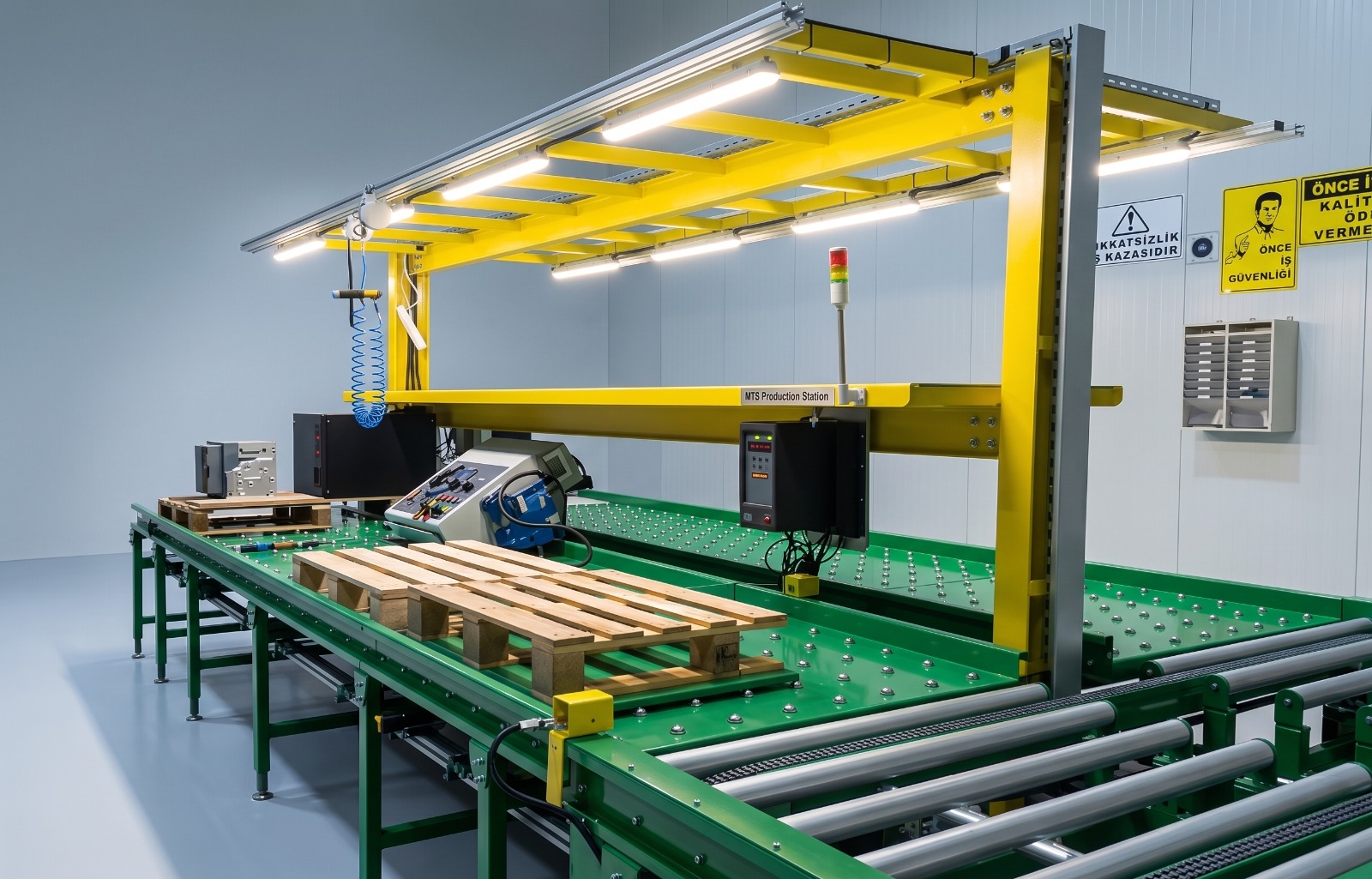

Conveyor & Material Handling Systems

We design and build conveyor and material-handling systems that make material flow safe, fast and efficient — helping plants increase production capacity, workforce productivity and process continuity.

  • Roller conveyors
  • Belt conveyors
  • Chain conveyors
  • Screw conveyors
  • Turning tables

Automated Storage & Rack Systems

Solutions engineered specifically for production plants and warehouses: high load capacity, safe operation and a flexible modular structure for maximum use of space. Long-lasting, reliable storage systems that support production, logistics and shipping.

Electric Cable-Reel Storage System

Developed to store cable reels safely and neatly — and to cut cable to the required length without removing the reel from the system. Vertical storage delivers maximum capacity on a minimum footprint; reducing forklift traffic improves both safety and efficiency. Thanks to its modular structure, it also adapts to boxes, wheels, tyres, long rolled products and similar goods.

Capacity

  • 40 reels in total (8 racks × 5)
  • Max. 1,750 kg per rack
  • Reel: 600 mm × Ø1200, max. 350 kg
  • Adaptable on request

Machine Data

  • Dimensions (L×W×H): 7250 × 5500 × 2000 mm
  • Total weight: 11,000 kg
  • Loading: by forklift or pallet truck, on traverses

Safety & Smart Operation

  • Safety light curtain at the loading entrance
  • Automatic emergency stop on breach
  • Recipe-based sequencing brings reels to the operator
  • Optional cable measuring & cutting table

Special-Purpose Machine Manufacturing

We develop customer-specific machines and equipment that add value to production. Managing every step with an engineering mindset — from design to manufacturing, from assembly to commissioning — we build systems that increase our customers’ production efficiency, safety and sustainability.

  • Test machines
  • Automation equipment
  • Production support systems
  • Process machinery
  • Production-line revisions
  • Line dismantling & assembly
  • Plant relocation projects
  • Mechanical installation work

Active-Part Assembly Platform

Technical Specifications

  • Platform length: max. 13 m (variable)
  • Vertical travel: 4,000 mm (800–4,800 mm)
  • Load capacity: max. 2 t (variable)
  • Electrically driven trapezoidal screw mechanism
  • Telescopic bridge between the two platforms

Safety Features

  • Overload protection system
  • Ball-screw safety nuts with wear-detection sensor
  • Tilt sensors for smooth, precise vertical travel
  • Rope-pull emergency-stop switches
  • Certified lifeline system
  • Polyurethane stoppers

Welded Constructions & Machining

We provide high-strength welded constructions and precision machining for the needs of many different industries. Producing to international standards, we deliver parts and equipment with high strength, dimensional accuracy and long service life.

  • Steel constructions
  • Welded machine frames
  • Precision-machined parts
  • Stainless-steel equipment
